User manuals, dimensioned drawings, and technical specifications are provided below for the v3 USB-PD chargers. Documents for previous generations can be found at the bottom of the page.

USER MANUAL
DIMENSIONS
CORE CHARGER

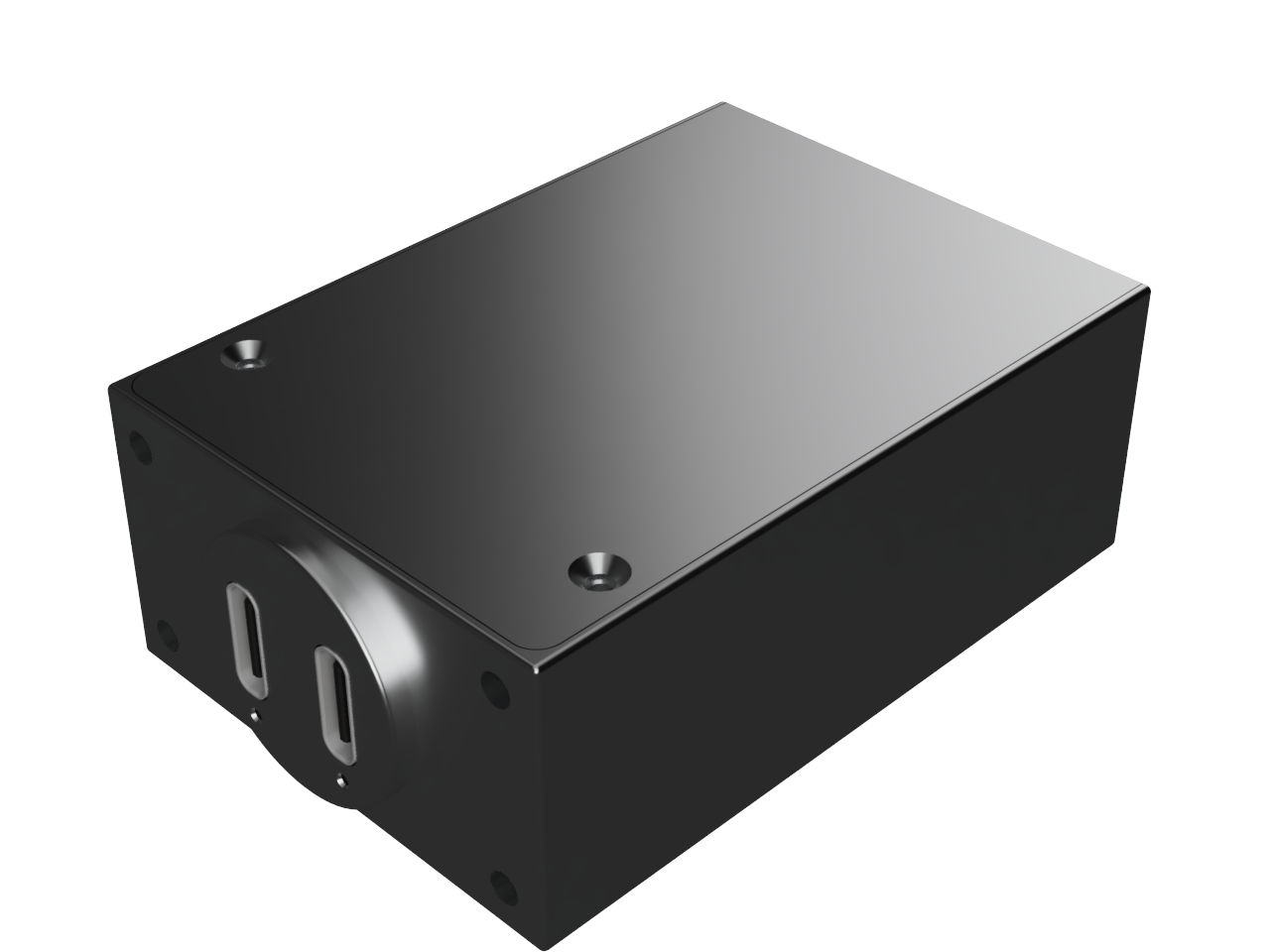

Render of USB-PC charger

View Dimensions

AIRCRAFT PANEL MOUNT 2 ¼” / 57mm

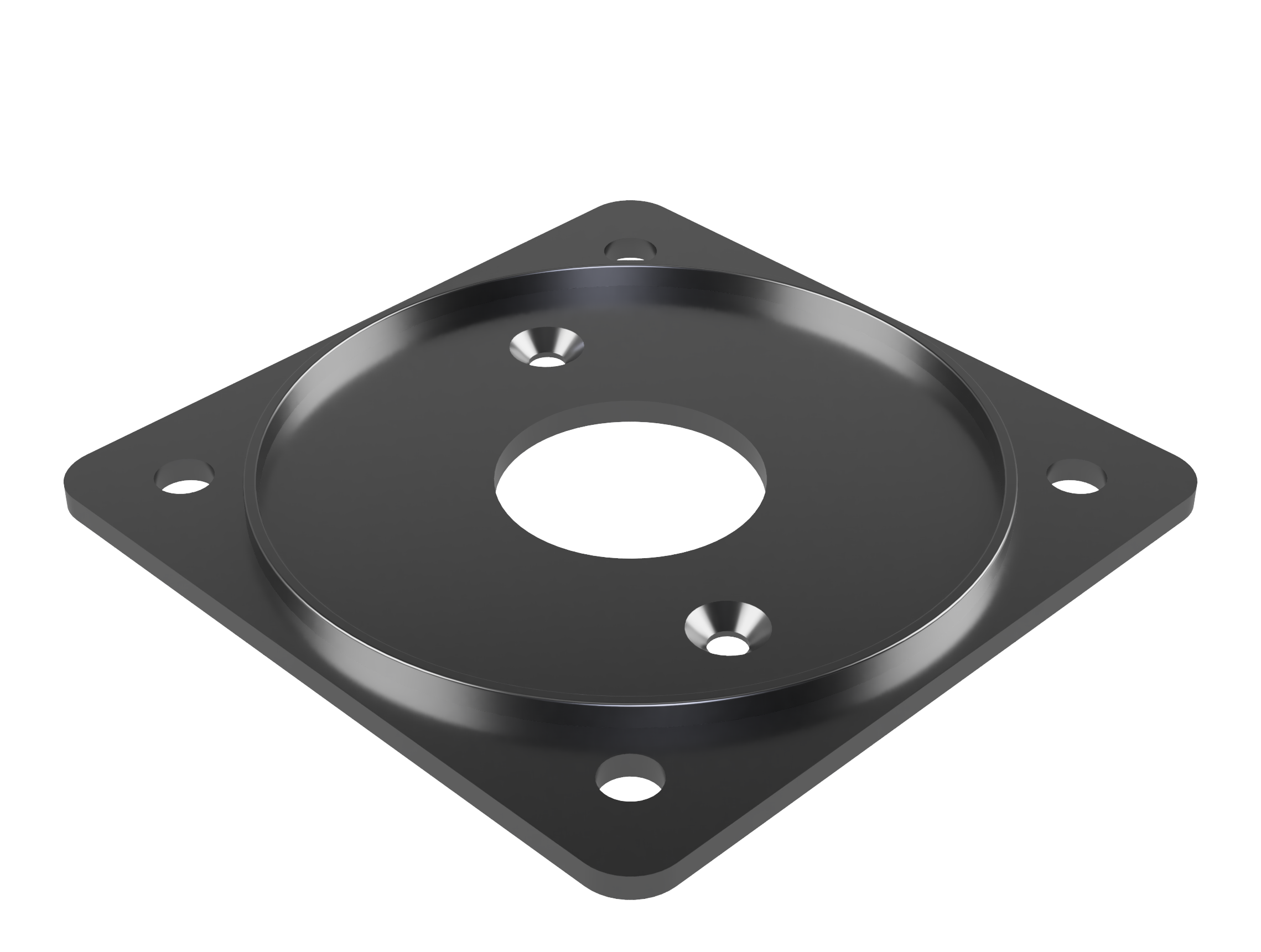

Render of 57mm aircraft panel mount adapter plate

View Dimensions

AIRCRAFT PANEL MOUNT 1 ¼” / 32mm

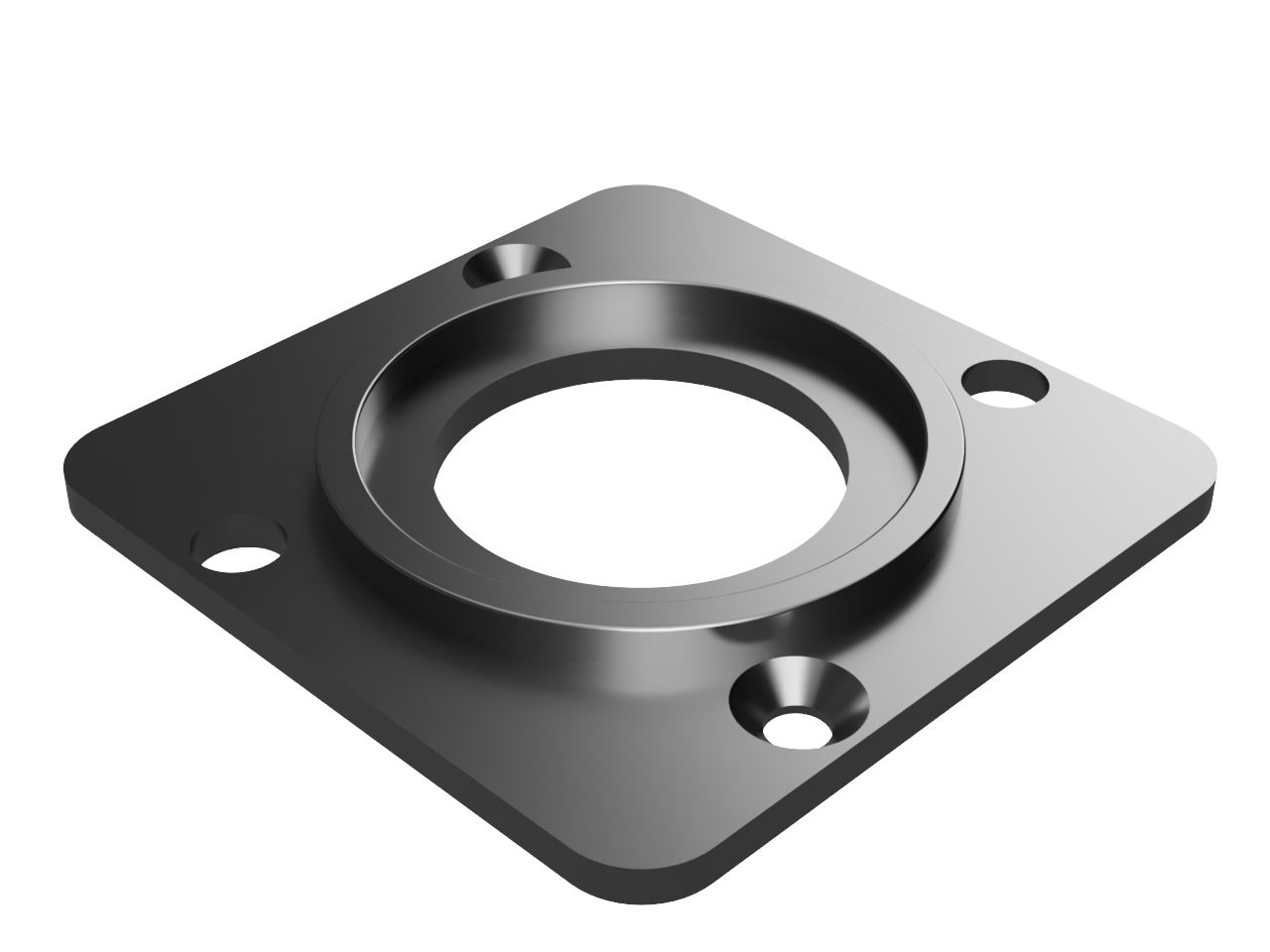

Render of 32mm aircraft panel mount adapter plate

View Dimensions

EXISTING V2 UPGRADE PANEL MOUNT

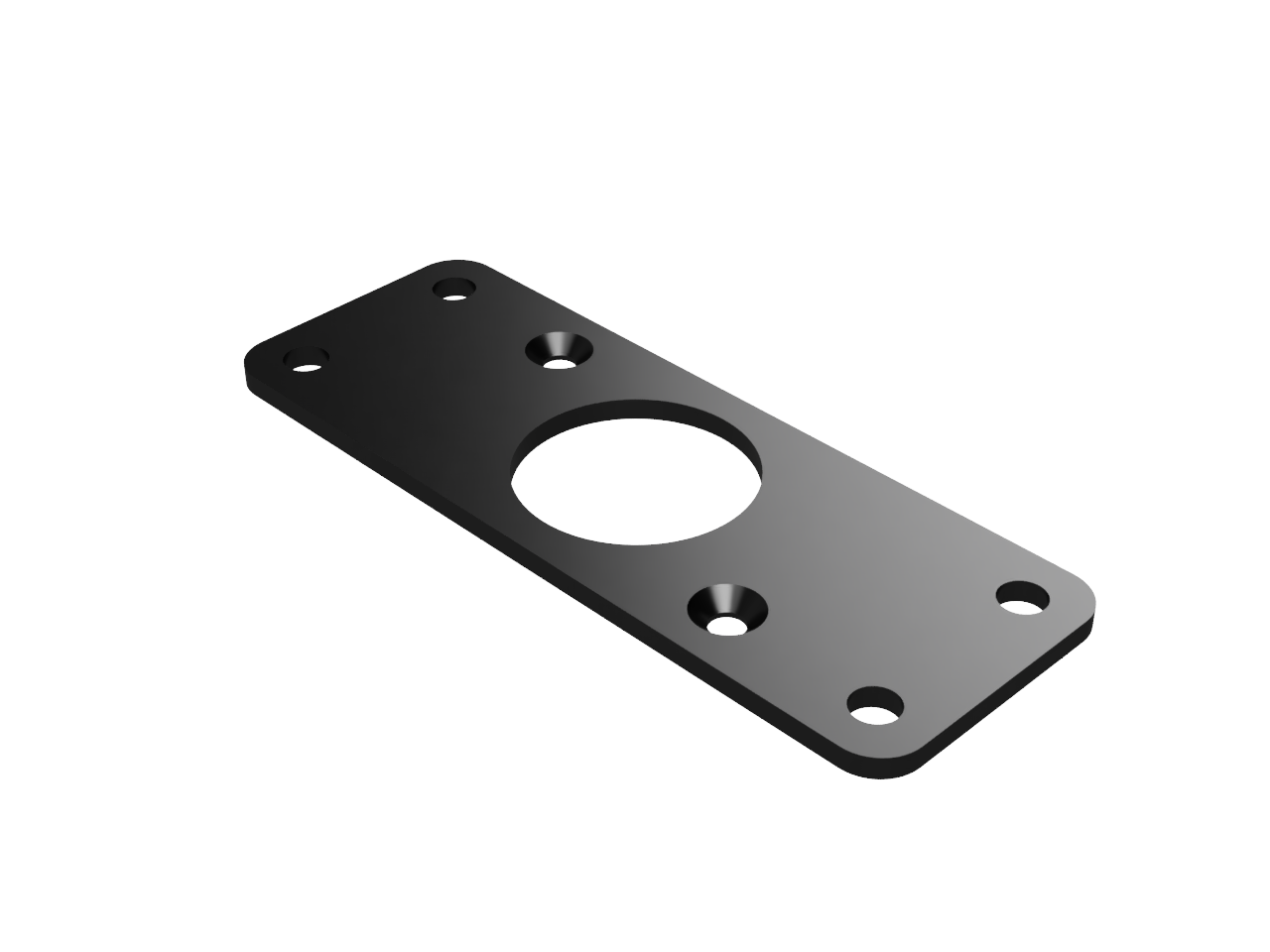

Render of the v2 to v3 panel mounting adapter plate

View Dimensions

SPECIFICATIONS

Provisional specifications for the dual port units

USB Ports2 x Type USB-C
USB PowerUp to 45 Watts per port.
Adjustable to meet regulatory or aircraft available power restrictions
Max input power consumption7.14A @ 14V input (both ports at 45W)
3.57A @ 28V input (both ports at 45W)
Input votltage14V to 28V nominal, 12V to 32V acceptable
Nominal output voltageUSB Standard 5V, 9V, 15V, 20V
USB PPS supported variable between 5V to 20V
USB Protocol supportUSB-PD 3.2 v1.0
Diagnostic / configuration portUSB-C located on the rear of the charger for diagnostics and configuration
USB Port status indicationPort active and OK, Port fault
Dimensions
Weight
Operating temperature (Celsius)0 – 50
Power input connectorMolex Micro-Fit 3.0
